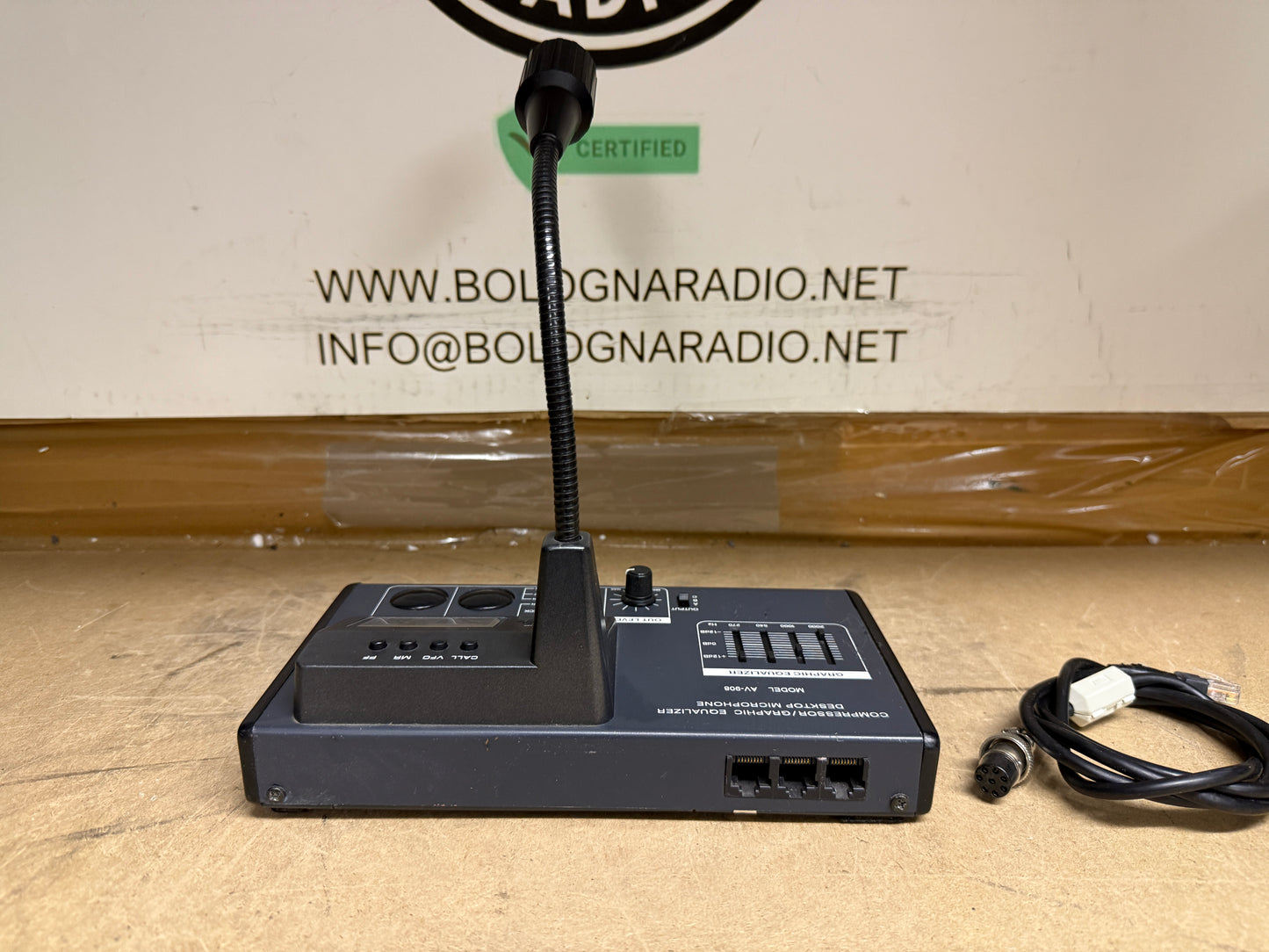

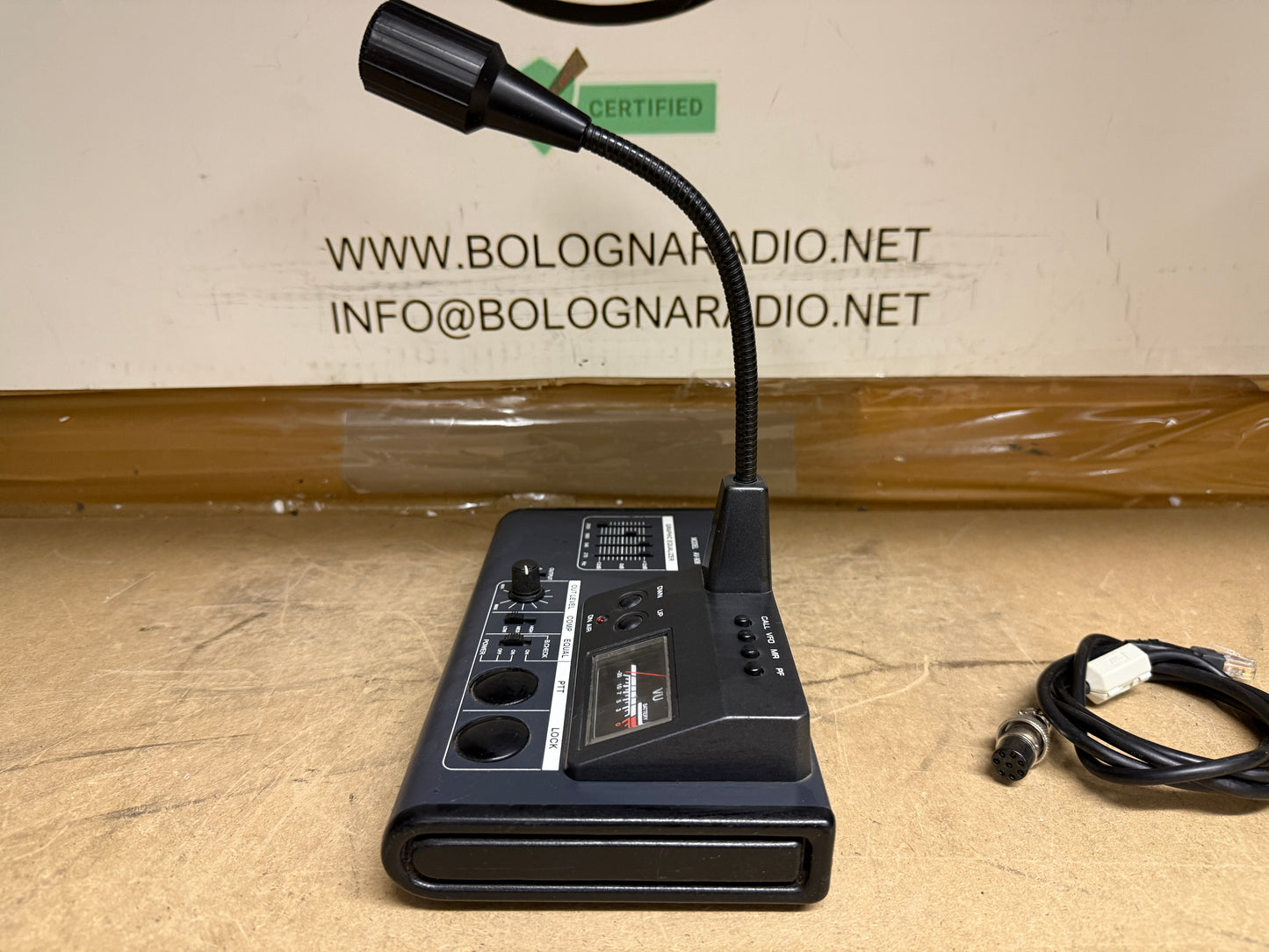

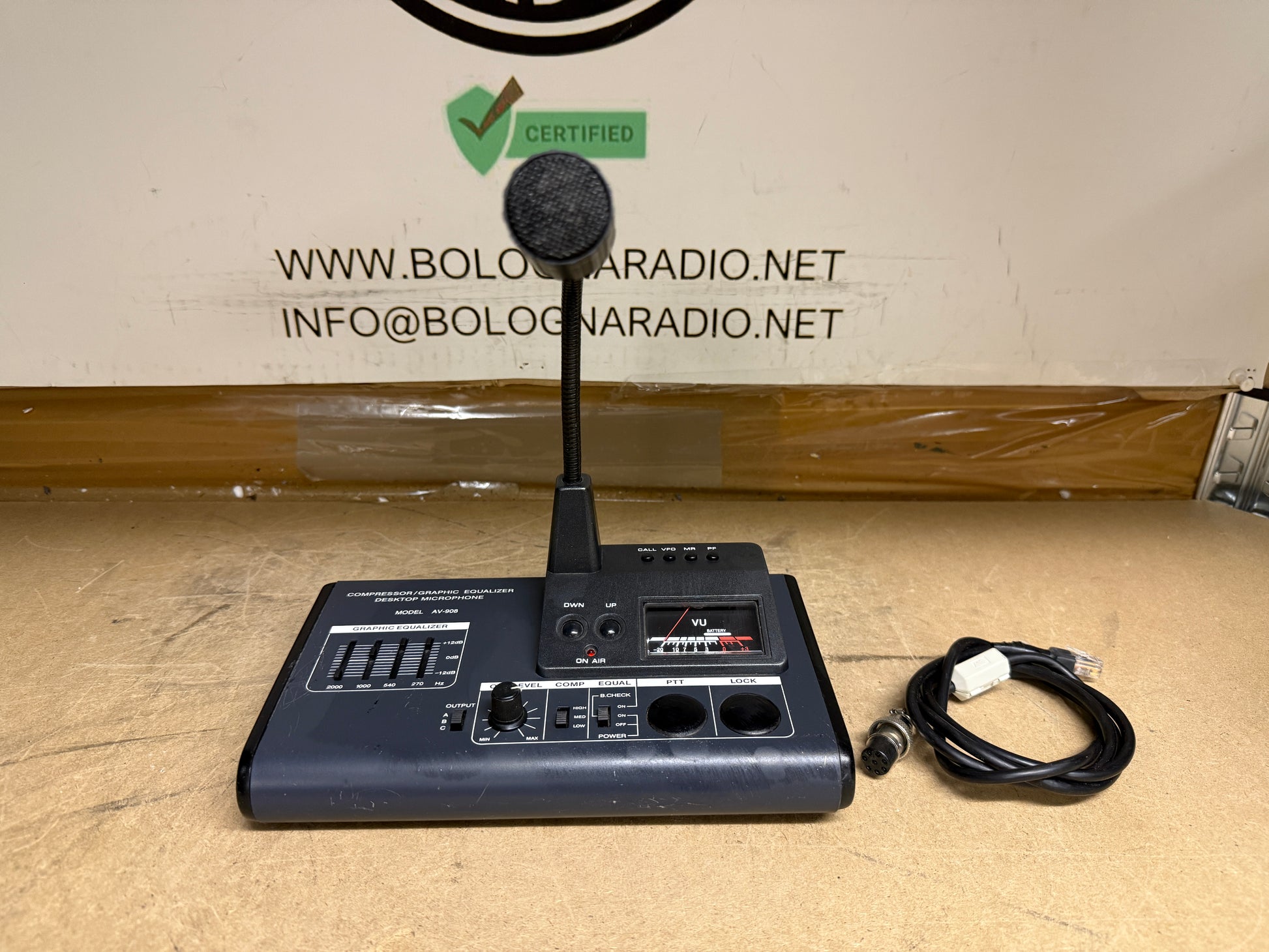

AV-908 (o anche DM-5000)
Microfono da Base Capsula Ceramica ad Alta Sensibilità con Compressore ed Amplificatore per Apparati Amatoriali
Microphone: High Sensitivity Ceramic MIC. Element 1 pc
Compressor Level: High: 45 dB, Med: 30 dB, Low: 10 dB
S/N Ratio (Graphic Equalizer Part): 80dB
Distortion Factor (Graphic Equalizer Part): 0.05% (at flat)
Graphic Equalizer: 4 elements (270,540,1000,2000Hz)+12dB range
Output Voltage: COMP: 0- 30mV (RMS)
Matching Output Impedance: 500 ohms – 100K ohm
Power Voltage: DC 6~9 V
Current Consumption: At Equalizer “OFF” Receiving: 3.5mA, Transmitting: 4.5mA
At Equalizer “ON” Receiving: 10mA, Transmitting: 11mA
Alarm Sound: Approx. 4.5KHz Intermittent Tone
External Size: 227 X 130 X 320 mm
Weight: 1000gr
As standard, it is supplied with cable compatible with Kenwood equipment (Av-24K).
