Yupiteru MVT 7100 scanner 0 - 1650 Mhz AM / FM / WFM / SSB / CW

Yupiteru MVT 7100 scanner 0 - 1650 Mhz AM / FM / WFM / SSB / CW

€150,00 EUR
€150,00 EUR
In offerta Esaurito
Imposte incluse.

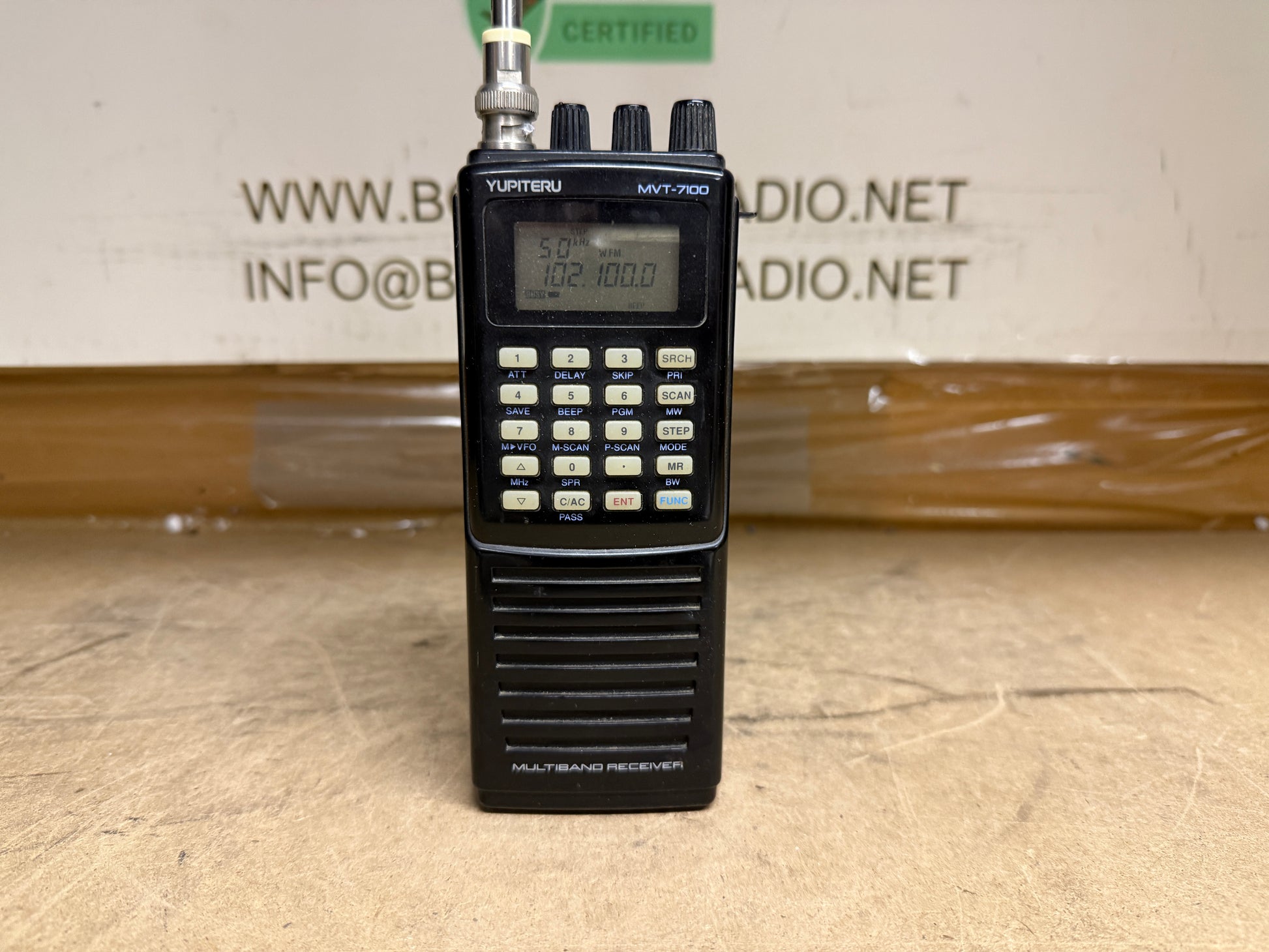

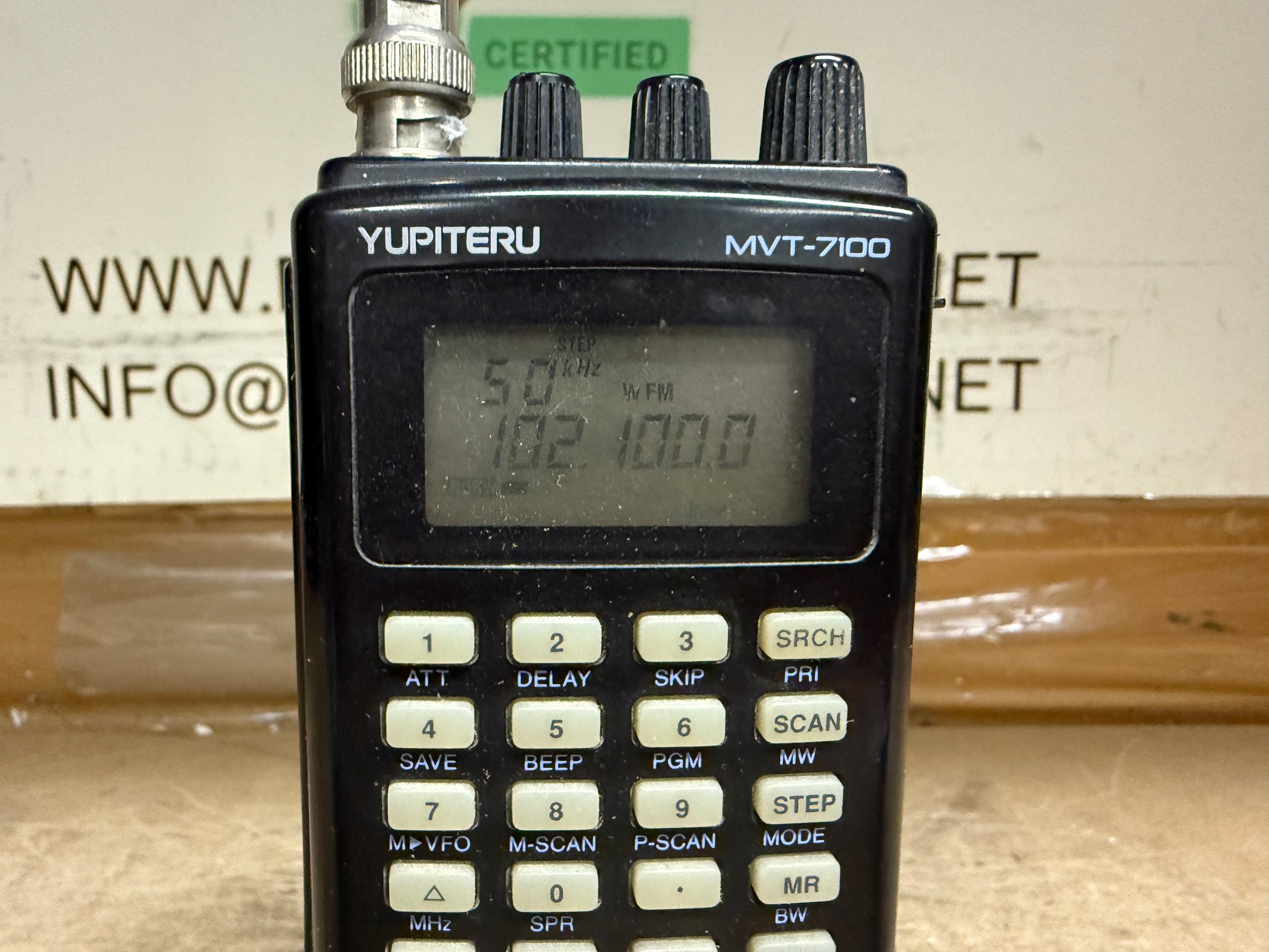

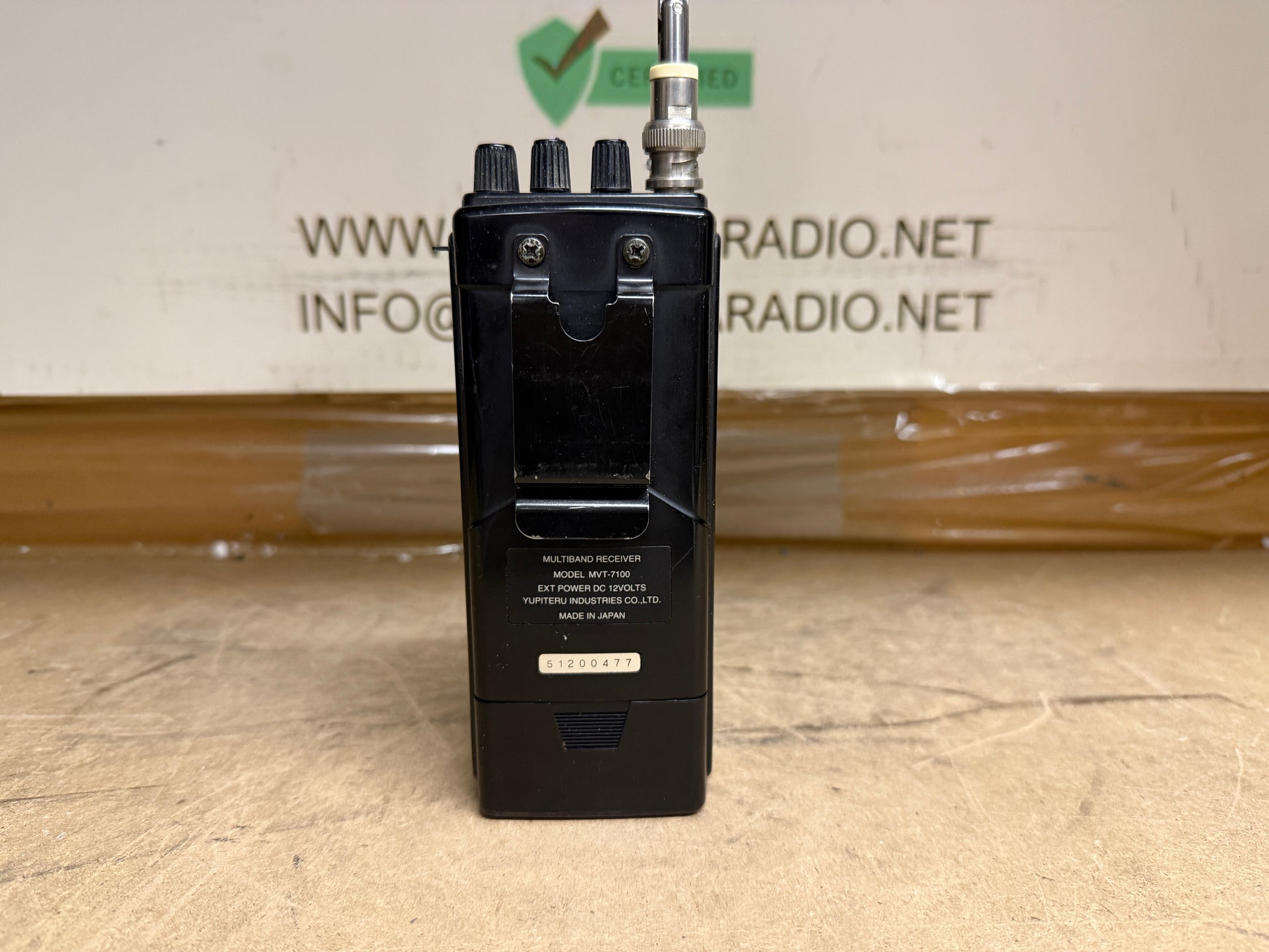

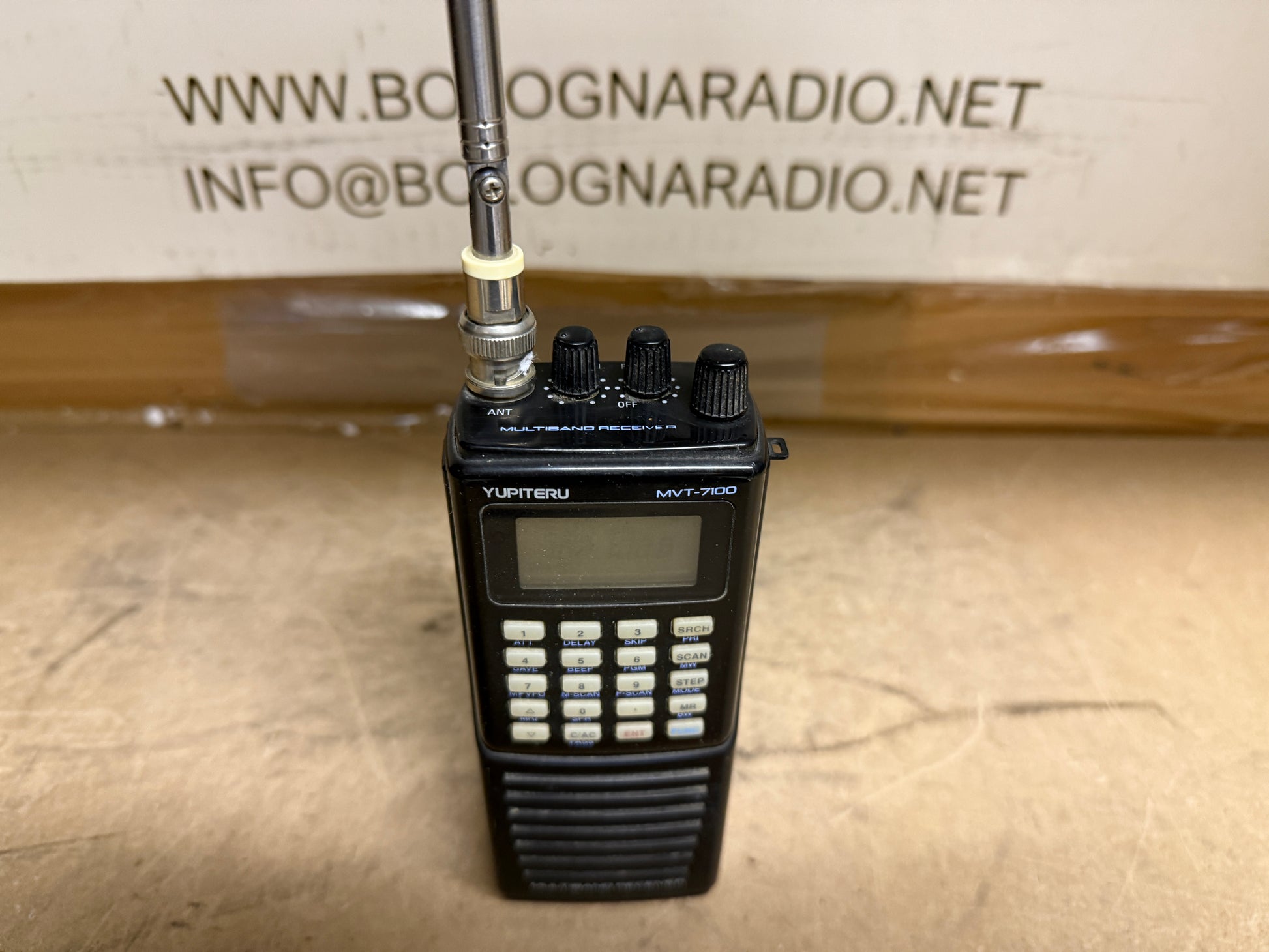

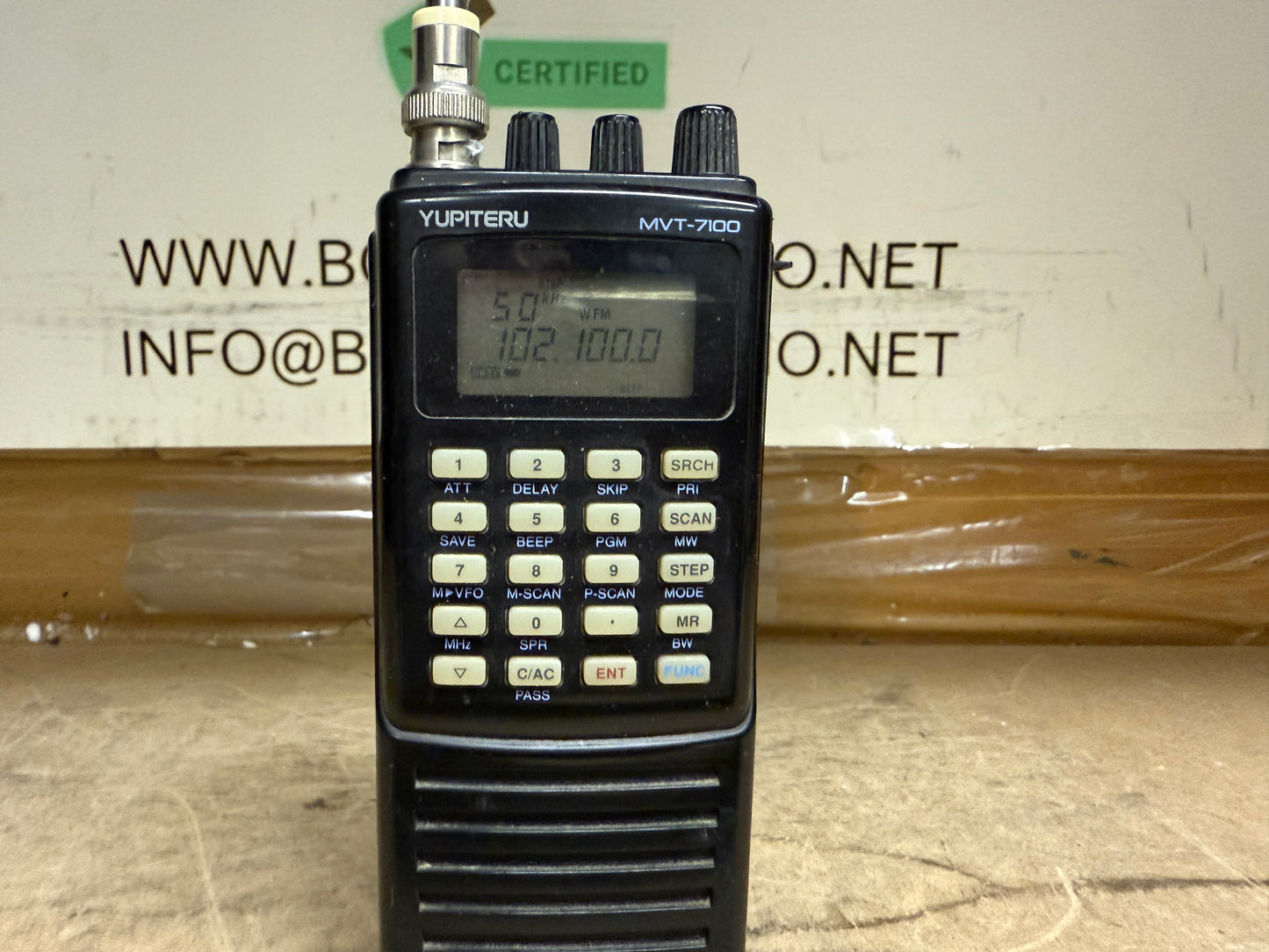

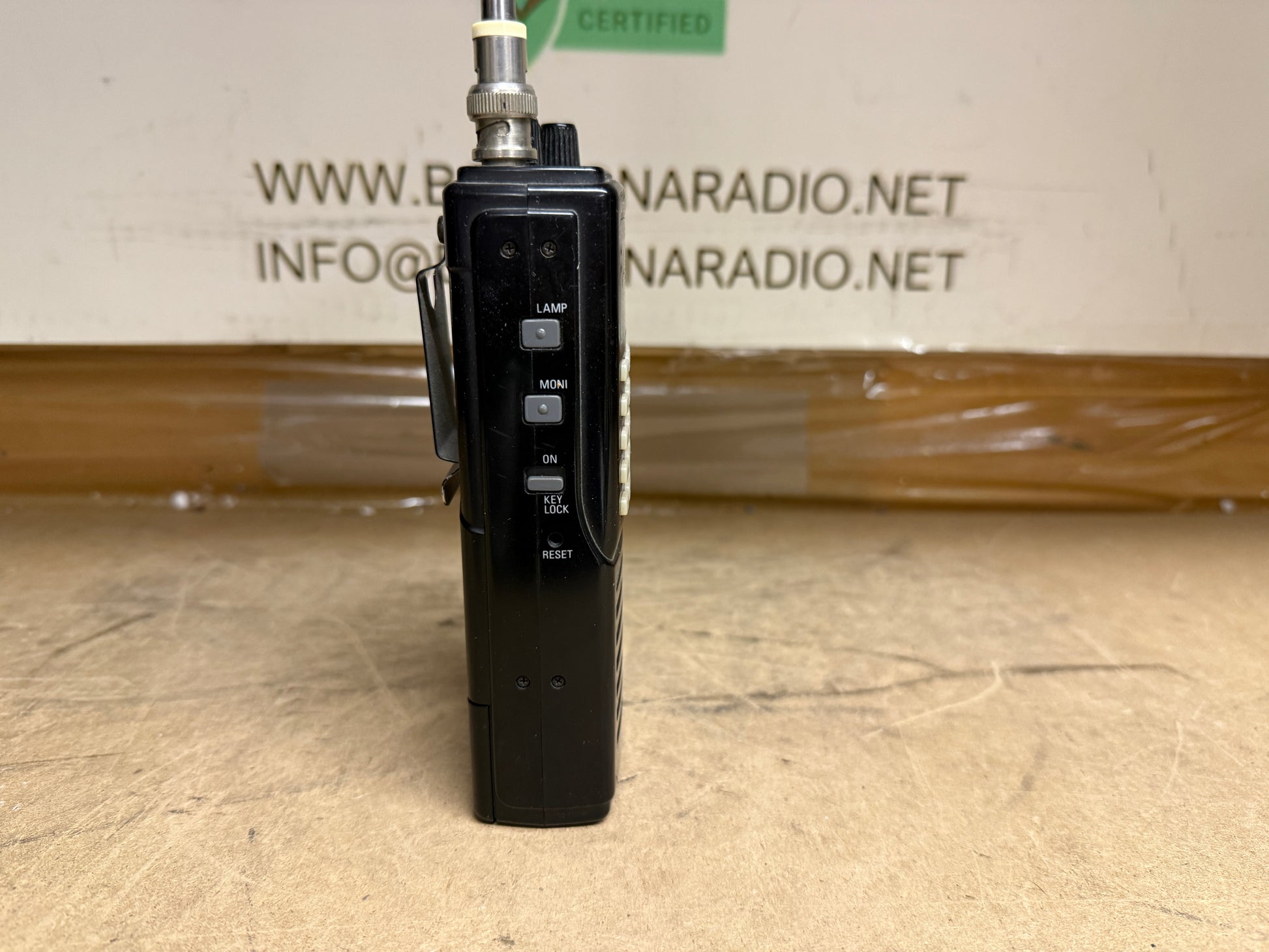

Ricevitore scanner Yupiteru MVT 7100

perfettamente funzionante



GENERAL
Type: HF/VHF/UHF receiver/scanner
Frequency range: 0.53-1650 MHz (Can tune down to 0.1 MHz)
Tuning steps: 50 / 100 Hz
1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz
Mode: AM / FM / WFM / SSB / CW
Channels/memory management: 1000 regular @ 30 ch/s
500 search pass
10 search band
1 priority
Power supply: 4.8-6 VDC (Four R6 / AA NiCd or alkaline batteries)
or 12 VDC external
Current drain/power consumption: 10-140 mA
Antenna impedance/connector: 50 ohms / BNC
Dimensions (W*H*D): 64*155*38 mm (2.52*6.1*1.5")
Weight: 320 g (11.29 oz)
Other features:


RECEIVER SECTION
Receiver system: ? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity: AM (10 dB S/N)
0.53-2 MHz: 10 uV
2-30 MHz: 1.5 uV
30-1000 MHz: 0.5 uV
FM (12 dB SINAD)
2-30 MHz: 1.5 uV
30-1000 MHz: 0.5 uV
1000-1300 MHz: 1 uV
WFM (12 dB SINAD)
30-1000 MHz: 0.75 uV
SSB/CW (10 dB S/N)
2-30 MHz: 1 uV
30-1000 MHz: 0.5 uV
Selectivity:
Image rejection:
AF output power/speaker: 100 mW at ?% distortion / 8 ohms
External speaker connector:



Visualizza dettagli completi
